Paper Making 7.5kW Disc Micron Sand Mill Disk Mill Machine
The main characturistics:
1.Different materials for meeting dirffent needs :
Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.
2. Decrease the temperature:
Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.
3. Strenghten the fineness:
The different fineness after grindinig can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.
4.Enhance the efficiency:
High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.
5. Reduce the workforce with indicator light
One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of humen. the mill machines will add more if need central control system. It's will be automation and intelligence and saving more labor cost.
The main parameter
1. Explosion proof motor: 7.5kW 380V 50HZ
2. Effective volume of grinding chamber: 5L 10L
3. Water pressure(Mpa): 0.3
4. Cooling water consumption: 2.5 -3m³/h
5. Dimension (L*W*H): 1940*900*2000mm
6. Weight: 800Kg

No	Main parts	SP5 Explosion-proof	Notes
1	External vessel	304 stainless steel
2	Inner grinding vessel	Silicon Carbide Ceramics
3	Dispersing shaft	40Cr with hard chromium plating
4	Dispersing disk (agitator disk)	PU coated 304 stainless steel
5	Feeding and discharging end covers on the cylinder	304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory lubricating-cooling system
8	Feeding pump	1/2” ARO diaphragm pump;
9	Appliance configuration	Explosion-proof machine, suitable for water base materials, motor 7.5kW. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

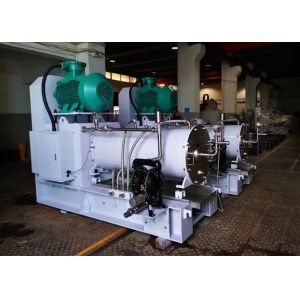

The production show

The Silicon Carbide Ceramics inner chamber

The Packing and Shipping
( The machine will be covered with anti-abrasion film and then packed in plywood cases. then sea shipping by FCL or LCL.)

After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 60min feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The Related production (Zirconia bead and dispersing machine)




FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.

Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.
