30L 22Kw Explosion Bead Mill For Paint SUS304 9Cr18Mo With Double Mechanical Seal

Allwin is a professional manufacturer of wet grinding bead mill and high speed mixer since 1993, owns dozons of patents, honoring China Hight-Tech Corp., supply over 10000 unites of machines all around the world, used in various industries like paint, ink, pigment, color paste, dye, minerals, food addictives, pharmacuetics, battery materials, ceramics, etc.

Mainly hot sale model is SP classic disc type bead mills and HZ PLUS dynamic discharging bead mills, and also high speed mixers. Meanwhile we have machines from lab trial pillot mill to massive production bead mills, 0.5L, 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,250L. And also we can do customized option according to special requirement, to match different feed pump according to different types of viscosity, to match PLC control according to automatic control, to use different materials according to different raw material requirement or mineral pollution or temperature control, etc.

Our professional technical team and considerated service help Allwin win great reputation and a large amount of customer from the world. Warmly welcome customers visit our factory and do FAT after signed the contract.

1. 30L Bead Mill Technical Data

No	Main Parameters	SP30	Note
1	Explosion-proof motor (kW)	22 kW ( Ex-proof)	Non-ex optional
2	Effective volume of grinding chamber (L)	30L	50L optional
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2.5 -3m3/h	Advise offer the Cooling water less 10°C
5	Dimensions:L*W*H (mm)	1800*900*1800
6	Weight (kg)	1400

2. 30L Bead Mill Machine Configuration Instructions

No	Main parts	SP30 Explosion-proof	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	9Cr18Mo Alloy Steel
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of Dispersing disk (agitator disk)	SUS 304 stainless steel
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory screwing-cooling system
8	Feeding pump	1” ARO diaphragm pump;	IngersoII Rand

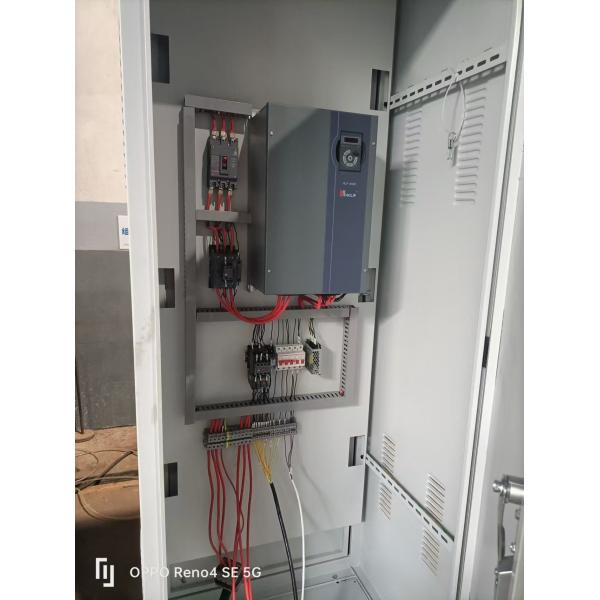

9	Appliance configuration	Explosion-proof machine, suitable for water base materials, motor 22kW. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

3. Application Industry

A. This 30L ex-proof sand mills are widely applied in Coatings, Paints, Inks, Pesticides,etc.

B. We can also offer customized service according to your requirements.

4. Display of 30L Bead Mill Machine

5. Advantages Of Bead Mill Machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.

B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.

C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
